Press Brake

This product has been discontinued and removed from our shelves.

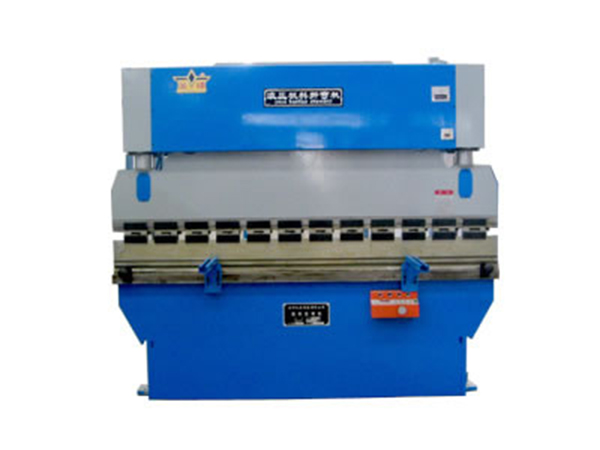

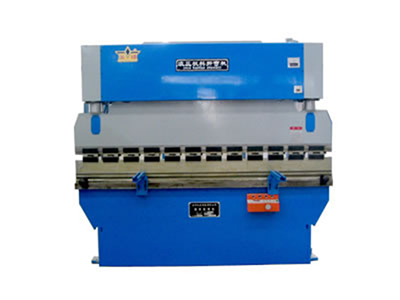

WC67Y series Hydraulic Press Brake
Press Brake

Characteristics of WC67Y series Hydraulic Press Brake

  • Our WC67Y series hydraulic press brake is designed with all steel welded structure and the stress can be removed by vibration, so it has the features of high mechanical strength and good rigidity.
  • This press brake is equipped with stable hydraulic drive system which is quite reliable.
  • Slide block synchronization mechanism adopts torsion bar forced synchronization.
  • Back gauge distance and upper slide block stroke can be adjusted through motor-driven way or finely adjusted manually. The adjusting value can be shown on the digital display.
  • Our hydraulic press brake is equipped with deflection compensation mechanism on the upper die. The machine tool that is larger than 250tons and longer than 4000mm can be designed with deflection compensation mechanism on the lower die.

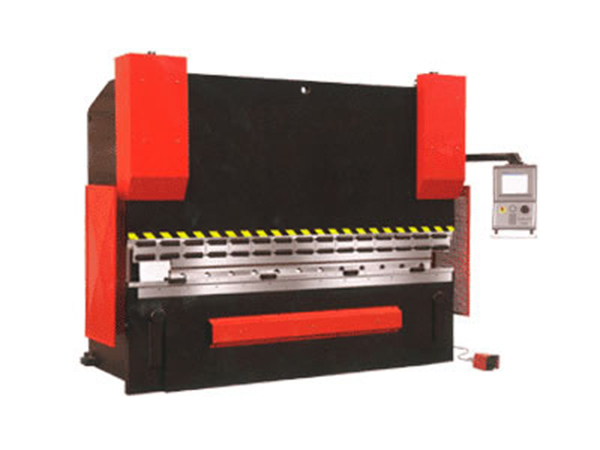

WC67K series CNC Double-Cylinder Press Brake
Press Brake

Characteristics of WC67K series CNC Double-Cylinder Press Brake

  • The mainframe of WC67K series CNC double-cylinder press brake is WC65Y series press brake.
  • The numerical control system of this CNC double-cylinder press brake is supplied by DELEM Company.
  • The back gauge displacement and slide block stroke are both automatically controlled by computer.
  • The back gauge of this press brake adopts ordinary screw mandrel and precision ball screw mandrel to eliminate the transmission clearance.

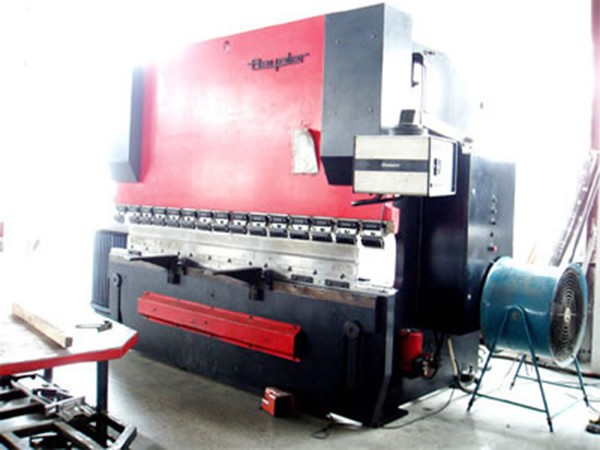

WC67K series Double Unit Linked Press Brakee
Press Brake

Characteristics of WC67K series Double Unit Linked Press Brake

  • WC67K series press brake adopts double-cylinder or three-cylinder mainframe of the same specification. It is equipped with double unit linked synchronization device.
  • Double unit linked press brake can be used to process super-long work pieces, such as lamp post and power line pole. It is quite suitable for city construction and highway construction.
  • The two linked press brakes can also be used separately, so as to improve production efficiency.
  • Your special requirement can be satisfied.

Press Brake
A press brake, also called brake press, is a machine tool used to bend sheet and plate material, especially sheet metal. According to different means of applying force, just brakes fall into mechanical press brakes, pneumatic press brakes, hydraulic press brakes and servo-electric press brakes. The mostly commonly used press brakes are CNC press brakes and hydraulic press brakes. As a professional press brake manufacturer in China, we can produce WC67Y series hydraulic press brakes, WC67K series CNC double-cylinder press brakes and WC67K series double unit linked press brakes.

Aside from press brakes, we also offer fertilizer equipment, ball mills, rotary kilns, pulse bag dust collectors, etc. All these products are made from high quality raw materials. They are now sold to Singapore, Indonesia, India, Malaysia, Pakistan, Iran, Turkey, Nigeria and more.

All of our products come with 12-month warranty. Within the warranty period, we can help install and debug the equipment, train your operators and provide maintenance service for you. Additionally, we can provide OEM service for our customers.

We have obtained ISO9001:2000 certification and ISO9001:2008 certification, so you can feel secure in using our press brakes, cement equipment, shearing machines, etc.

Furthermore, we are surrounded by highways and sea ports. This will facilitate the transport of your goods as well as reduce your transportation cost.

Please feel free to contact us if you have any problem.

Parameters of WC67Y series Hydraulic Press Brake
Specification Nomal force Length of Workbench Distance between Columns Throat Depth Ram Stroke Open Height Main Motor power Overall Dimensions
KN mm mm mm mm mm KW mm
WC67Y-40/2200 400 2200 1650 200 100 340 4 2280×1470×2100
WC67Y-40/2500 400 2500 2000 250 100 340 4 2580×1470×2100
WC67Y-63/2500 630 2500 2000 250 100 370 5.5 2600×1725×2300
WC67Y-63/3200 630 3200 2490 250 100 370 5.5 3300×1725×2300
WC67Y-80/3200 800 3200 2490 250 120 380 5.5 3300×1725×2350
WC67Y-100/3200 1000 3200 2490 320 120 400 7.5 3290×1740×2400
WC67Y-100/4000 1000 4000 3000 320 120 400 7.5 4090×1740×2400
WC67Y-125/3200 1250 3200 2490 320 120 400 7.5 3280×1740×2400
WC67Y-125/4000 1250 4000 3000 320 120 400 7.5 4080×1740×2400
WC67Y-160/3200 1600 3200 2490 320 180 450 11 3280×1930×2600
WC67Y-160/4000 1600 4000 3000 320 180 450 11 4080×1930×2600
WC67Y-160/6000 1600 6000 4100 320 180 450 11 6080×1980×3100
WC67Y-200/3200 2000 3200 2490 320 200 470 11 3280×1930×2700
WC67Y-200/4000 2000 4000 3000 320 200 470 11 4080×1930×2700
WC67Y-200/6000 2000 6000 4600 320 200 470 11 6080×2180×3180
WC67Y-250/3200 2500 3200 2490 350 250 540 15 3280×2510×2800
WC67Y-250/4000 2500 4000 3000 350 250 540 15 4080×2010×2800
WC67Y-250/6000 2500 6000 4600 350 200 540 15 6080×2280×3280
WC67Y-300/4000 3000 4000 3000 350 250 560 18.5 4080×2200×3100
WC67Y-400/4000 4000 4000 3100 350 250 560 22 4080×2400×3180
WC67Y-400/5000 4000 5000 3600 350 250 560 22 5080×2400×3200
WC67Y-500/4000 5000 4000 3100 350 250 600 30 4080×2400×3200
WC67Y-500/6000 5000 6000 4400 350 250 600 30 6080×2400×3300
WC67Y-600/6000 6000 6000 4600 350 300 700 37 6080×2500×3600
WC67Y-800/6000 8000 6000 4600 350 300 720 45 6080×2600×3800
WC67Y-1000/8000 10000 8000 6000 350 300 760 55 8080×2800×4600
